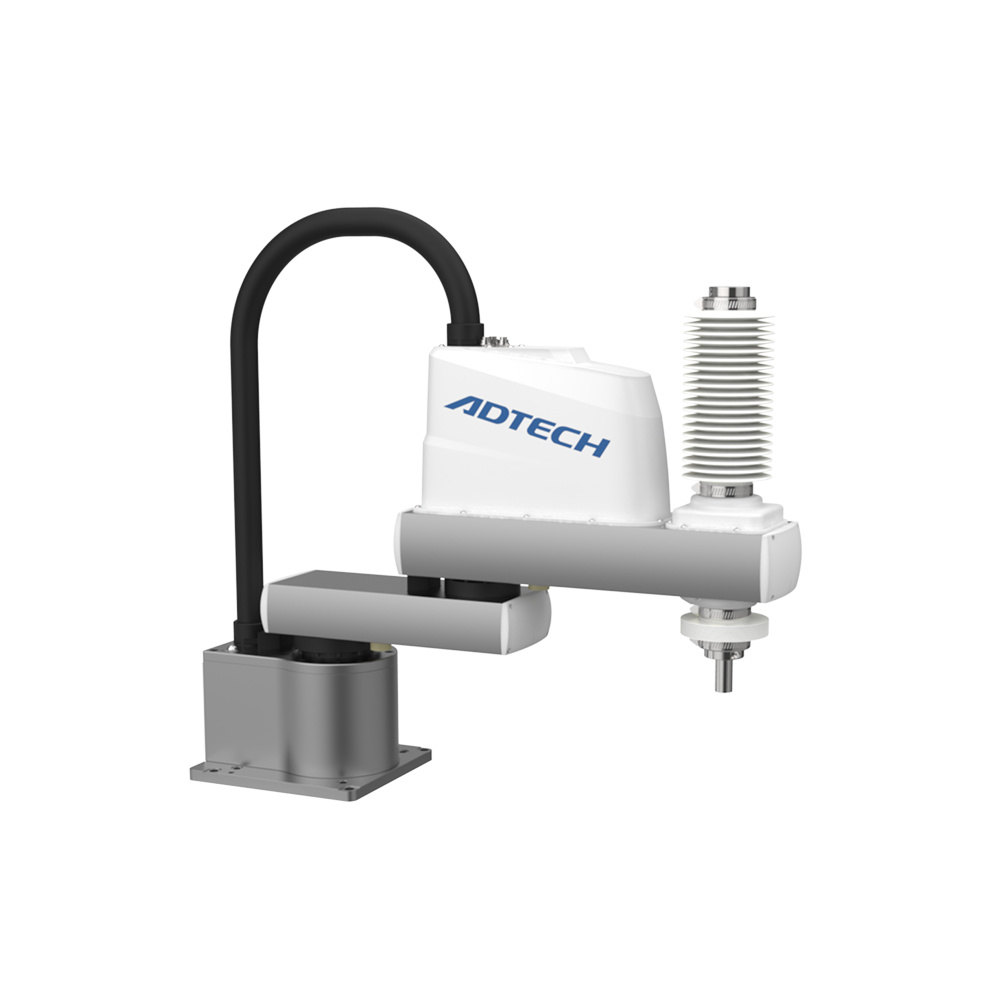

ARJ Series SCARA Robot (5-10kg)

ARJ Series SCARA Robots (2-20kg) | High-Speed & Cleanroom | Eagler System

The ARJ series is designed for industries requiring high cleanliness, leveraging its ISO Class 4 certification and specialized design . Common applications include:

Semiconductor Manufacturing: Ideal for tasks like wafer handling where a particle-free environment is critical .
Pharmaceutical and Medical Industries: Suitable for applications such as drug encapsulation and the handling of sensitive medical supplies where contamination control is essential .
Precision Electronics: Used in the handling and assembly of components like glass panels and other delicate parts that require a pristine environment .
Food Processing: Applicable for automated tasks in food handling and packaging where hygiene and cleanliness are paramount .

These robots are engineered to ensure production environments remain free of contaminants, thereby enhancing product quality and safety in high-end manufacturing .

More infoRoll up

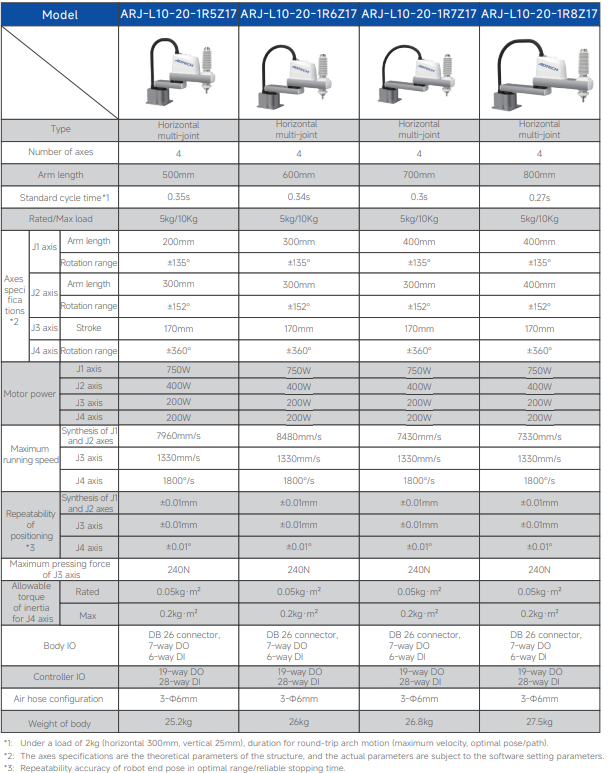

Arm length: 500 mm to 800 mm

Rated / maximum load: 5 kg / 10 kg

Standard cycle time: 0.27 to 0.35 seconds (depending on model)

Cleanliness class: ISO Class 4

Key design features: Equipped with a new advanced seal design for effective protection against dust and moisture, specially developed to suppress particle generation.

Robot weight: 25 to 27.5 kg

More infoRoll up

We provide tailored solutions, which means every quote is unique.

To give you an accurate estimate of delivery cost and lead time, we'll review your specific project needs, order quantity, and technical requirements upon request.
