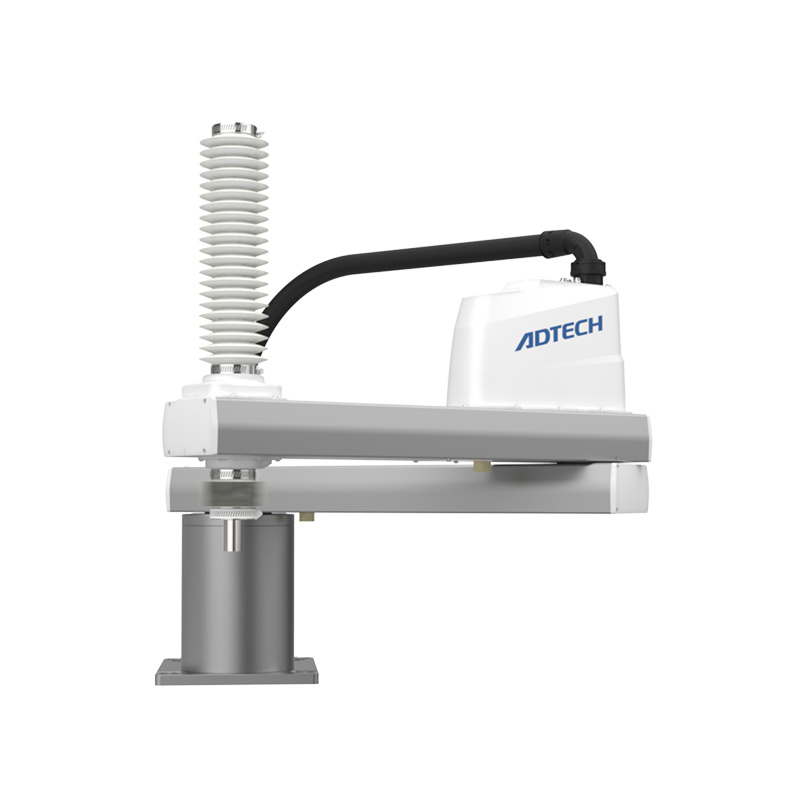

ARJ Series SCARA Robot (10-20kg)

The ARJ series is specifically designed for industries requiring high cleanliness, leveraging its ISO Class 4 certification and specialized dust-free construction. Common applications include:

  • General Automation Tasks: Including loading and unloading, process-to-process transfer, packaging, assembly, and inspection across various cleanroom applications

  • Semiconductor Manufacturing: Ideal for wafer handling and other processes requiring ISO Class 4 cleanroom compliance where particle-free operation is critical

  • Pharmaceutical and Medical Industries: Suitable for drug encapsulation and handling of sensitive medical supplies where contamination control is essential

  • Precision Electronics: Used in handling and assembly of components such as glass panels and LED manufacturing where pristine environments are required

  • Food and Beverage Processing: Applicable for automated food handling and packaging operations requiring hygienic conditions

  • Lithium Battery and Solar Cell Manufacturing: Used in production processes where cleanliness is increasingly important

These robots are engineered to ensure production environments remain free of contaminants, thereby enhancing product quality and safety in high-end manufacturing applications.

More infoRoll up

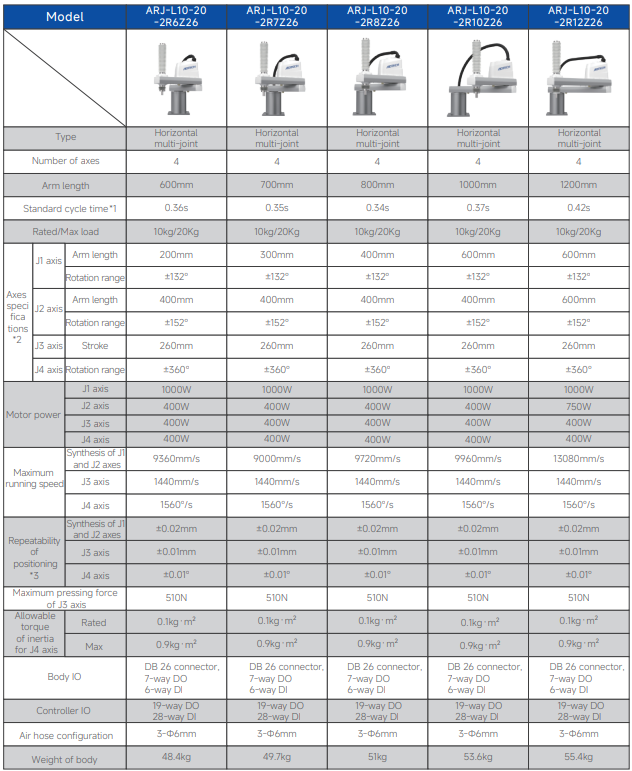

Arm length range: 600 mm to 1200 mm

Rated / maximum load: 10 kg / 20 kg

Cleanliness class: ISO Class 4 (equivalent to Class 10 cleanroom standards)

Key design features: Manufactured from non-particle generating materials with an improved seal design for effective protection against dust and moisture, specially developed to suppress particle generation.

Control system: Equipped with integrated QC410 controller and drive system.

Performance: Standard cycle time from 0.34 to 0.42 seconds, positioning repeatability accuracy up to ±0.02 mm.

Robot weight: 48.4 to 55.4 kg

More infoRoll up
