SR Series Universal Robot SR90/2280B

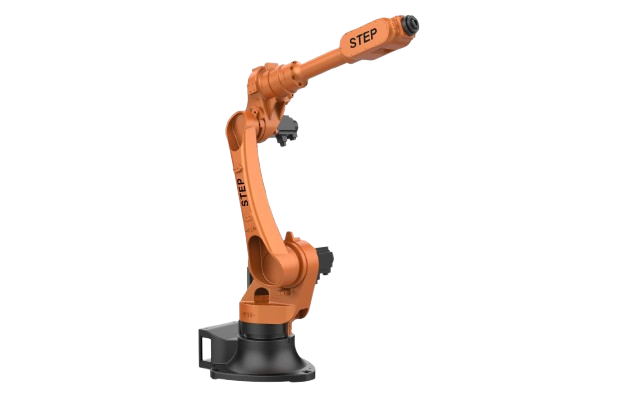

SR90/2280B Industrial Robot
The SR90/2280B is a heavy-duty 6-axis industrial robot specifically engineered as a dedicated bending solution for high-payload applications. Its optimized link length ratio is designed to meet the specific requirements of bending processes, while its modular construction enables rapid tooling changes and flexible operation without requiring press brake elevation or pit excavation .
Key Applications:
-
High-Speed Bending: A dedicated bending robot supporting both reach-under and non-reach-under bending methods with higher stacking heights. Ideal for industries such as elevators, electrical cabinets, filing cabinets, and kitchen/bathroom equipment manufacturing .
-
Material Handling: Capable of transporting and palletizing components up to 90 kg within an extensive 2281 mm working range with speed and reliability .
-
Machine Tending: Suitable for loading and unloading large workpieces in CNC machines, machining centers, and other production equipment.
-
Deburring and Trimming: Well-suited for multiaxis cutting, deburring, trimming, and polishing operations on large parts with consistent accuracy .
-
Robot Milling: Can perform robot milling operations requiring smooth path control and surface finish quality .
-
Foundry and Forging: Suitable for handling heavy parts in demanding industrial environments.
The result:
You achieve exceptional bending process stability, high-speed operation, and flexible automation capabilities — eliminating the need to raise your press brake or excavate pits, while supporting multiple bending methods and higher stacking heights for increased productivity .

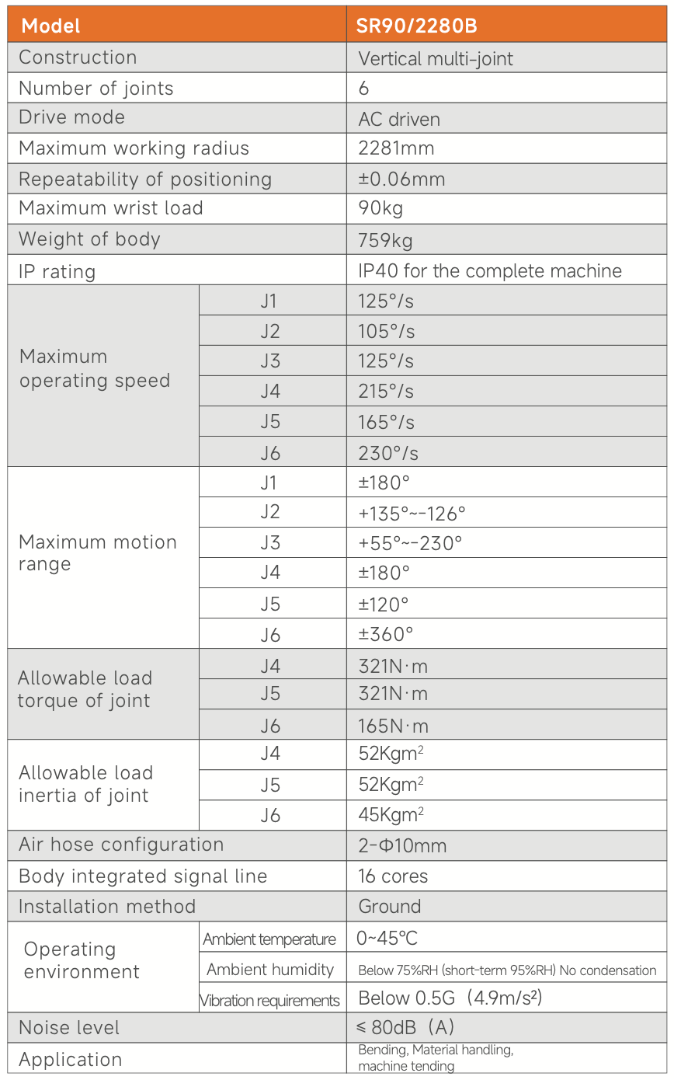

Arm length: 2281 mm
Rated / maximum load: 90 kg
Robot weight: 759 kg
Protection class: IP40 for the complete machine
Key design features:
- Specialized design for bending tasks.
- Positioning repeatability: ±0.1 mm.
- High operating speed, optimized for bending tasks (15% faster in motion).
- Modular construction with a specially selected arm length ratio for an optimal bending trajectory.
- Specialized function package for bending with good compatibility.
We provide tailored solutions, which means every quote is unique.
To give you an accurate estimate of delivery cost and lead time, we'll review your specific project needs, order quantity, and technical requirements upon request.
