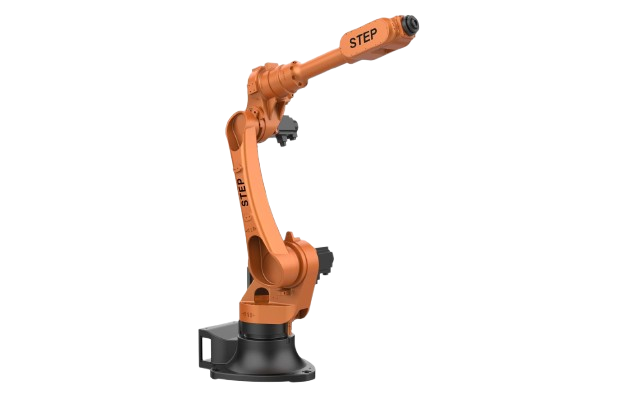

SR Series Universal Robot SR60/2280B
The SR60/2280B is a heavy-duty 6-axis industrial robot specifically engineered for high-payload bending applications and versatile automation tasks. Its optimized link length ratio is designed to meet the specific requirements of bending processes, while its modular construction enables rapid tooling changes and flexible operation .
Key Applications:
-
High-Speed Bending: Specifically designed as a dedicated bending robot, supporting both reach-under and non-reach-under bending methods with higher stacking heights. Ideal for industries such as elevators, electrical cabinets, filing cabinets, and kitchen/bathroom equipment manufacturing .
-
Material Handling: Capable of transporting and palletizing components up to 55 kg within an extensive 2281 mm working range with speed and reliability .
-
Machine Tending: Suitable for loading and unloading medium to large workpieces in CNC machines, machining centers, and other production equipment .
-
Deburring and Trimming: Well-suited for multiaxis cutting, deburring, trimming, and polishing operations on medium to large parts with consistent accuracy .
-
Assembly and Welding: Can perform assembly tasks, spot welding, and arc welding operations requiring both reach and payload capacity .
-
Foundry and Die Casting: Suitable for handling parts in harsh foundry environments, including die-casting applications .
The result:
You achieve exceptional bending process stability, high-speed operation, and flexible automation capabilities — eliminating the need to raise your press brake or excavate pits, while supporting multiple bending methods and higher stacking heights for increased productivity .

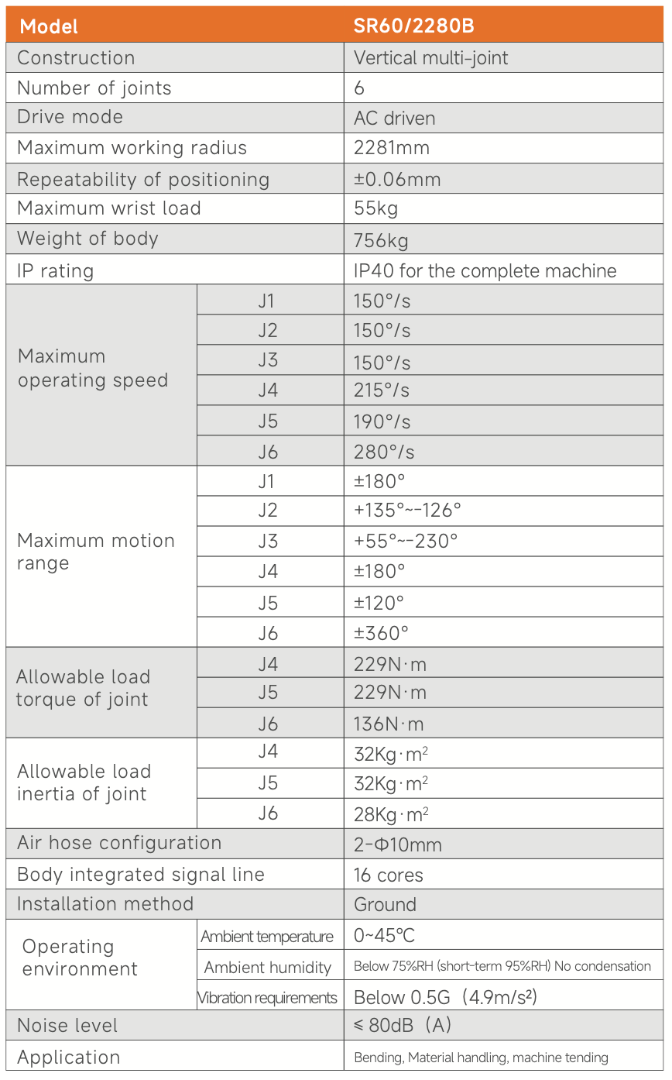

Arm length: 2281 mm
Rated / maximum load: 55 kg
Robot weight: 756 kg
Protection class: IP54 (body), IP65 (wrist).
Key design features:
-
Specialized bending design: Features a specific forearm-to-upper-arm ratio tailored for bending applications, supporting both "probe" and "non-probe" bending methods without requiring machine elevation or a floor pit .
-
Modular mechanical design: Incorporates a modular structure for easy and quick tooling changes .
-
High speed and precision: Offers fast operation speeds, a large working envelope, and high repeatability of ±0.06mm to ±0.1mm .
-
Integrated bending software package: Includes a dedicated bending function package compatible with mainstream press brake systems (Delem, Cybelec, Esa) to simplify programming .
-
Enhanced palletizing height: Engineered to support taller stacking heights, improving flexibility for material handling alongside bending .
-
Proprietary simulation software: Supported by the STEPStudio offline simulation software to improve workflow efficiency .
Protection Rating: IP54 (body), IP65 (wrist).
We provide tailored solutions, which means every quote is unique.
To give you an accurate estimate of delivery cost and lead time, we'll review your specific project needs, order quantity, and technical requirements upon request.
