SR Series Universal Robot SR50/2180

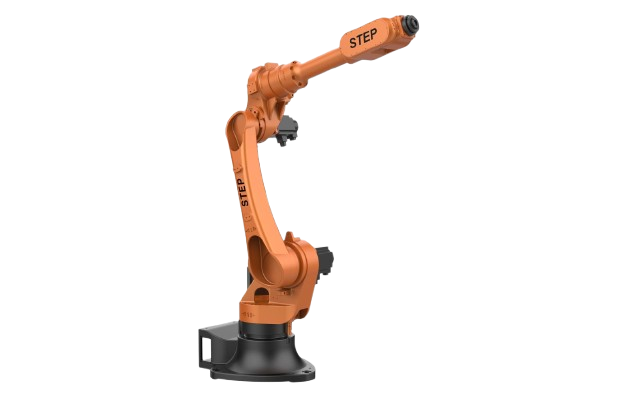

SR50/2180 Industrial Robot
The SR50/2180 is a heavy-duty 6-axis industrial robot engineered for high-payload applications requiring an exceptional reach and robust performance. Its rigid construction and advanced motion control algorithms ensure stable operation even under maximum load, making it ideal for demanding manufacturing environments.
Key Applications:
-
Material Handling: Capable of transporting and palletizing components up to 50 kg within an extensive 2180 mm working range with speed and reliability.
-
Machine Tending: Ideal for loading and unloading large CNC machines, machining centers, and heavy equipment, handling substantial workpieces with precision.
-
Palletizing: Well-suited for high-volume palletizing tasks in logistics and production lines, managing heavy stacks and large formats efficiently.
-
Spot Welding: Designed for spot welding applications in automotive body assembly, where high payload capacity and reach are essential.
-
Foundry and Forging: Can operate in harsh foundry environments for handling hot, heavy parts and die-casting applications.
The result:
You achieve exceptional payload capacity, extended reach, and reliable performance in heavy industrial applications — enhancing productivity and automation capabilities in industries such as automotive manufacturing, heavy machinery, foundry work, and large-scale logistics.
Arm length: 2180 mm
Payload: 50 kg (rated/maximum)
Robot Weight: Approximately 555 kg
Protection Rating: IP54 (body), IP65 (wrist).
Key features :
- High Precision: Repeatability of ±0.07 mm, maintaining accuracy even under maximum payload conditions.
- High Rigidity: Reinforced structure minimizes vibration and deflection during high-speed, high-load operations.
- Flexible Mounting: Can be floor or ceiling-mounted, allowing for optimal cell layout and space utilization.
- Large Working Envelope: Extended reach provides flexibility for handling large parts and accessing multiple machines.
- Reliable Communication: Supports multiple fieldbus communication protocols for seamless integration with existing production systems and factory networks.
We provide tailored solutions, which means every quote is unique.
To give you an accurate estimate of delivery cost and lead time, we'll review your specific project needs, order quantity, and technical requirements upon request.
