SR Series Universal Robot SR280/2850

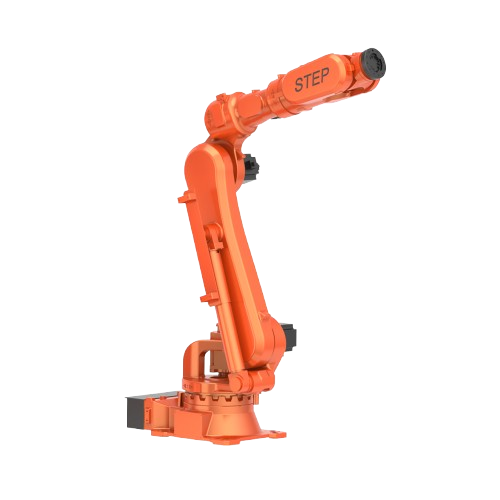

SR280/2850 Industrial Robot
The SR280/2850 is a heavy-duty 6-axis industrial robot engineered for ultra-high-payload applications requiring an exceptional reach of 2851 mm . Its series structure helps minimize the occupied area and reduces interference with surrounding equipment . The robot achieves high precision (±0.1 mm repeatability) without sacrificing speed, featuring a modular design that simplifies maintenance . Advanced high-order dynamic control algorithms ensure faster and more stable operation . With its substantial payload capacity of 280 kg and extended reach, this robot is a versatile solution for various demanding automation applications .
Key Applications:
-
Material Handling and Machine Tending: Capable of transporting, loading, and unloading heavy components up to 280 kg within an extensive 2851 mm working range with speed and reliability .
-
Material Removal: Well-suited for deburring, grinding, and trimming operations on large castings and fabricated parts.
-
Lithium Battery Handling: Widely used in lithium battery material handling and transport applications requiring high payload capacity .
-
Metal Processing: Suitable for various metal processing applications in industrial automation .
-
Woodworking and Furniture Manufacturing: Applied in automated processes for large wood components and furniture production .
-
Chemical and Building Materials: Used in handling and processing of chemical and construction materials .
The result:
You achieve exceptional payload capacity (280 kg), extended reach (2851 mm), and stable high-performance operation in the most demanding industrial applications — enhancing productivity and automation capabilities in industries such as lithium battery production, metal fabrication, woodworking, and construction materials manufacturing .

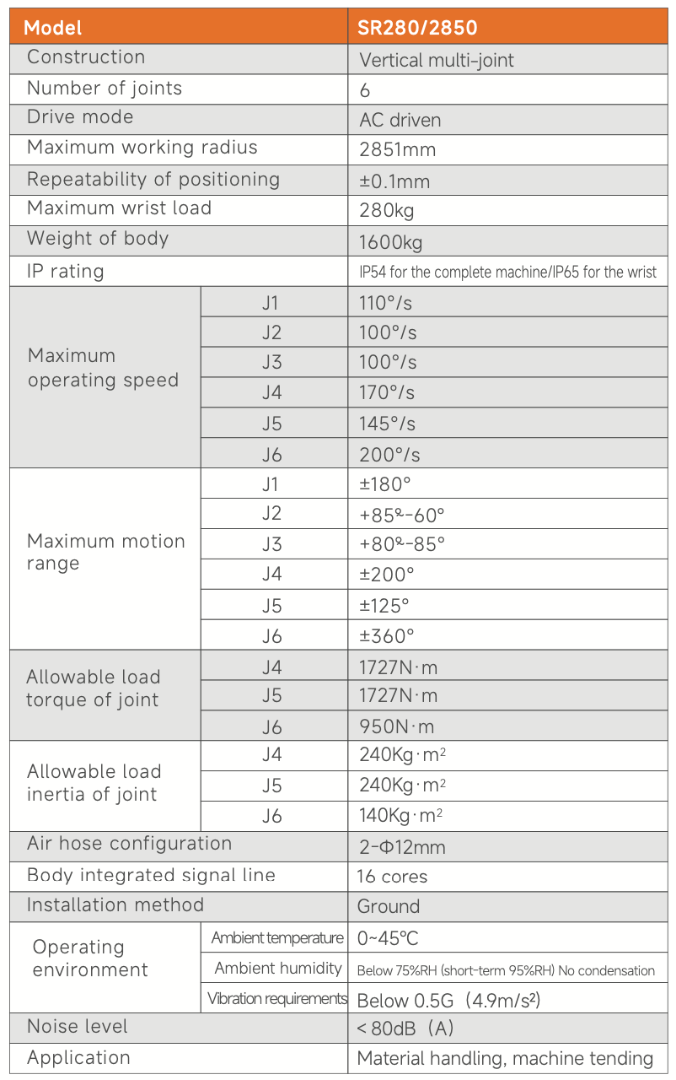

Reach: 2851 mm
Payload: 280 kg
Robot Weight: Approximately 1630 kg
Repeatability: ±0.1 mm — maintaining accuracy even under maximum load conditions
Protection Rating: IP54 (whole robot), IP65 (wrist) — designed for reliable operation in demanding industrial environments
Key design features:
- Number of Axes: 6
- Integrated Utilities: Built-in 16-core signal line and 2-Φ12mm air lines for easy tool mounting and clean cable management
- Compact design: Helps reduce occupied area and minimize interference zone
- Modular Design: Simplifies maintenance and repair
- Advanced Dynamic Control: High-order dynamics algorithms for faster, more stable operation
- Mounting Orientation: Floor mounting
- Reliable Communication: Compatible with various fieldbus protocols for seamless integration with existing production systems
We provide tailored solutions, which means every quote is unique.
To give you an accurate estimate of delivery cost and lead time, we'll review your specific project needs, order quantity, and technical requirements upon request.
