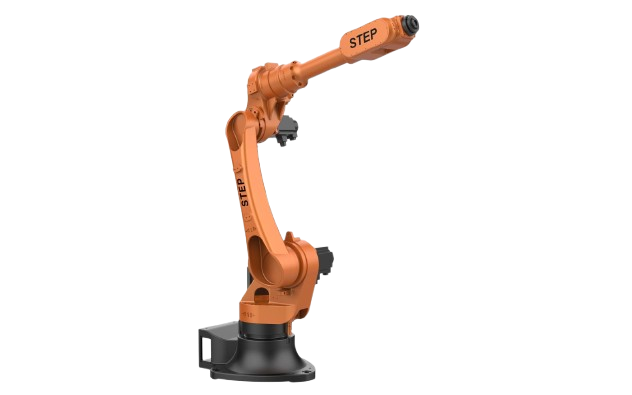

SR Series Universal Robot SR25/1720
The SR25-1720 is a powerful 6-axis industrial robot designed for high-payload applications requiring an extended reach and exceptional precision. Its compact structure allows for flexible operation in tight spaces while maintaining high speed and stability, making it ideal for complex manufacturing environments .
Key Applications:
-
Material Handling: Capable of transporting and palletizing components up to 25 kg within a 1718 mm working range with speed and reliability .
-
Machine Tending: Ideal for loading and unloading CNC machines, lathes, and machining centers, handling heavier workpieces with precision .
-
Deburring and Trimming: Well-suited for multiaxis cutting, deburring, and trimming operations on medium to large parts with consistent accuracy .
-
Polishing and Milling: Can perform robot milling and polishing tasks requiring smooth path control and surface finish quality .
-
Assembly: Suitable for precision assembly of larger components in automotive parts, photovoltaic, and lithium battery manufacturing .
The result:
You achieve increased payload capacity, extended reach, and reliable high-speed performance in demanding industrial environments — enhancing productivity across industries such as automotive components, photovoltaic, lithium battery, and general manufacturing .

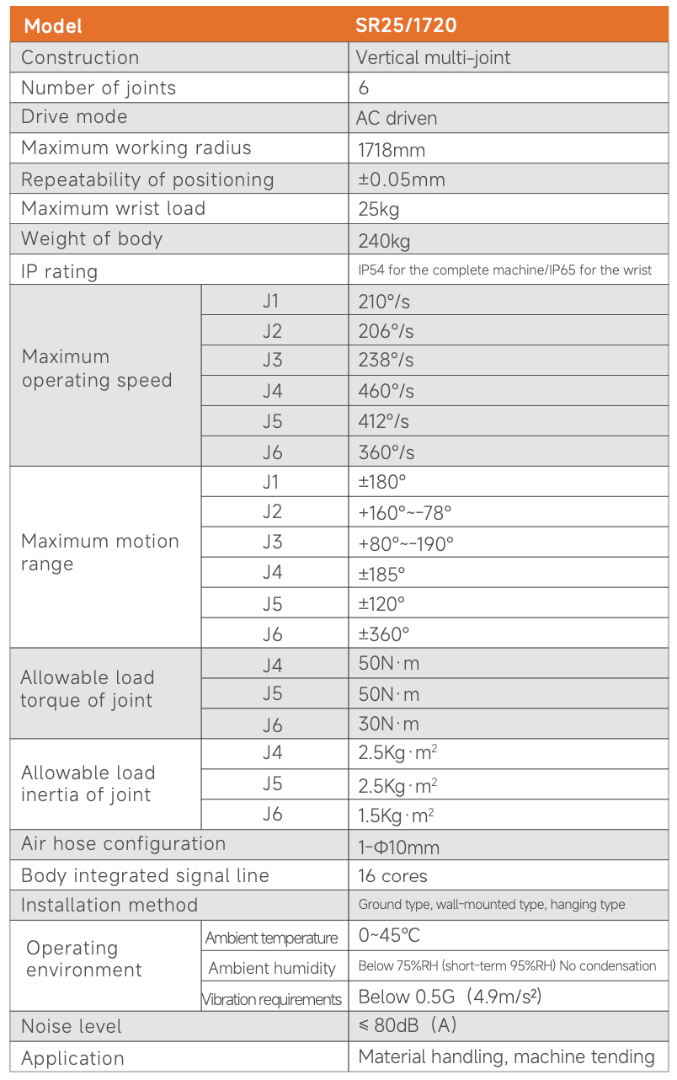

Arm length: 1718 mm
Rated / maximum load: 25 kg
Robot weight: 240kg.
Protection class: IP54 (body), IP65 (wrist).
Key design features:
- Compact structure for flexible operation in tight spaces .
- High repeatability and stable performance .
- Fast operating speed .
- Supports multiple fieldbus communication protocols .
- Features built-in I/O and air piping for convenient fixture installation .
- Suitable for applications in industries such as photovoltaics, lithium battery manufacturing, and automotive parts .
We provide tailored solutions, which means every quote is unique.
To give you an accurate estimate of delivery cost and lead time, we'll review your specific project needs, order quantity, and technical requirements upon request.
