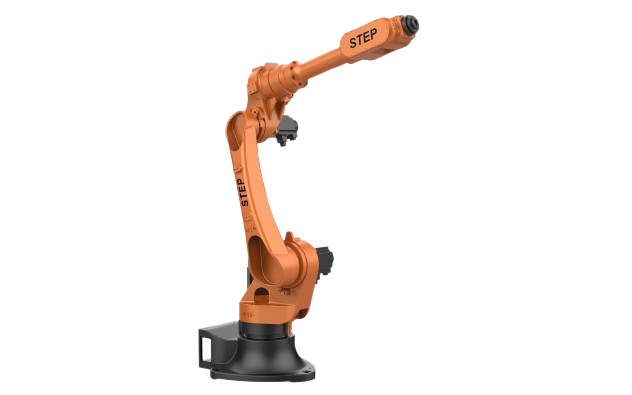

SR Series Universal Robot SR20/1700
The SR20/1700 is a high-performance 6-axis industrial robot designed for applications requiring a higher payload capacity combined with an extended reach. Its rigid construction, advanced motion control, and high protection class make it suitable for demanding manufacturing environments.
Key Applications:
-
Material Handling: Capable of transporting and palletizing components up to 20 kg within a large 1700 mm working range with exceptional speed and reliability.
-
Machine Tending: Ideal for loading and unloading CNC machines, lathes, and machining centers, handling heavier workpieces with precision and speed.
-
Arc Welding: Well-suited for automated welding of larger assemblies. The hollow wrist design protects cables and ensures smooth wire feeding, even in tight spaces.
-
Assembly: Suitable for precision assembly of larger components in automotive and heavy equipment manufacturing where both reach and payload are critical.
-
Material Removal: Can perform deburring, grinding, and trimming operations on medium-sized parts with consistent force control.
The result:
You achieve increased payload capacity, extended reach, and reliable performance in harsh conditions — enhancing productivity and automation flexibility across industries such as automotive, metal fabrication, and general manufacturing.
Reach: 1700 mm
Payload: 20 kg (rated/maximum)
Robot Weight: Approximately 250 kg
Protection Rating: IP54 (body), IP65 (wrist) — designed for reliable operation in harsh industrial environments with exposure to dust and coolant.
Key Features & Specifications:
- High Precision: Repeatability of ±0.05 mm, maintaining accuracy even at high operating speeds.
- Flexible Mounting: Can be floor, wall, or ceiling-mounted, allowing for optimal cell layout and space utilization.
- User-Friendly Control: Equipped with an industrial PC-based controller featuring an intuitive interface for easy programming and operation.
- Reliable Communication: Supports Ethernet and Wi-Fi for seamless integration with existing production systems and factory networks.
We provide tailored solutions, which means every quote is unique.
To give you an accurate estimate of delivery cost and lead time, we'll review your specific project needs, order quantity, and technical requirements upon request.
