SR Series Universal Robot SR175/3200

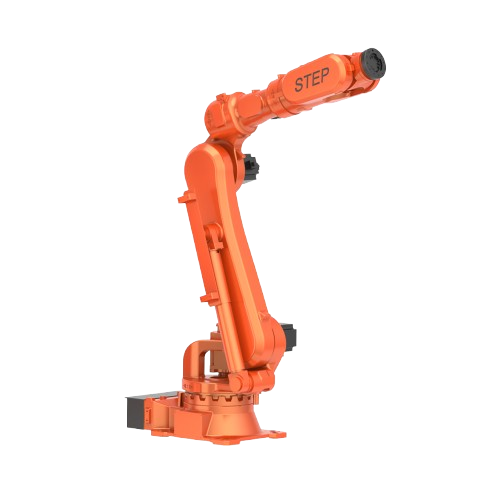

SR175/3200 Industrial Robot
The SR175/3200 is a heavy-duty 6-axis industrial robot engineered for high-payload applications requiring an exceptional reach of 3200mm . Its "slimming" design minimizes interference with surrounding equipment, while the compact base reduces floor space requirements . The robot achieves high precision without sacrificing speed, featuring reinforced construction and integrated mounting interfaces for various applications .
Key Applications:
-
Material Handling and Machine Tending: Capable of transporting, loading, and unloading heavy components up to 175 kg within an extensive 3200 mm working range with speed and reliability .
-
Spot Welding: Designed for spot welding applications with pre-installed interfaces for welding integration .
-
Material Removal: Well-suited for deburring, multiaxis cutting, trimming, and polishing operations on large castings and fabricated parts .
-
Robot Milling: Can perform robot milling operations requiring smooth path control and consistent accuracy .
-
Lithium Battery Handling: Specifically designed with mounting interfaces for lithium battery material handling and transport applications .
-
Palletizing and Depalletizing: Suitable for high-volume palletizing tasks in logistics and production lines, managing heavy stacks efficiently .
-
Automotive Components and Metal Fabrication: Widely used in automotive parts manufacturing and metal processing industries .
The result:
You achieve exceptional payload capacity, extended reach, and stable high-speed performance in demanding industrial applications — enhancing productivity and automation capabilities in industries such as lithium battery production, automotive manufacturing, metal fabrication, and construction materials .

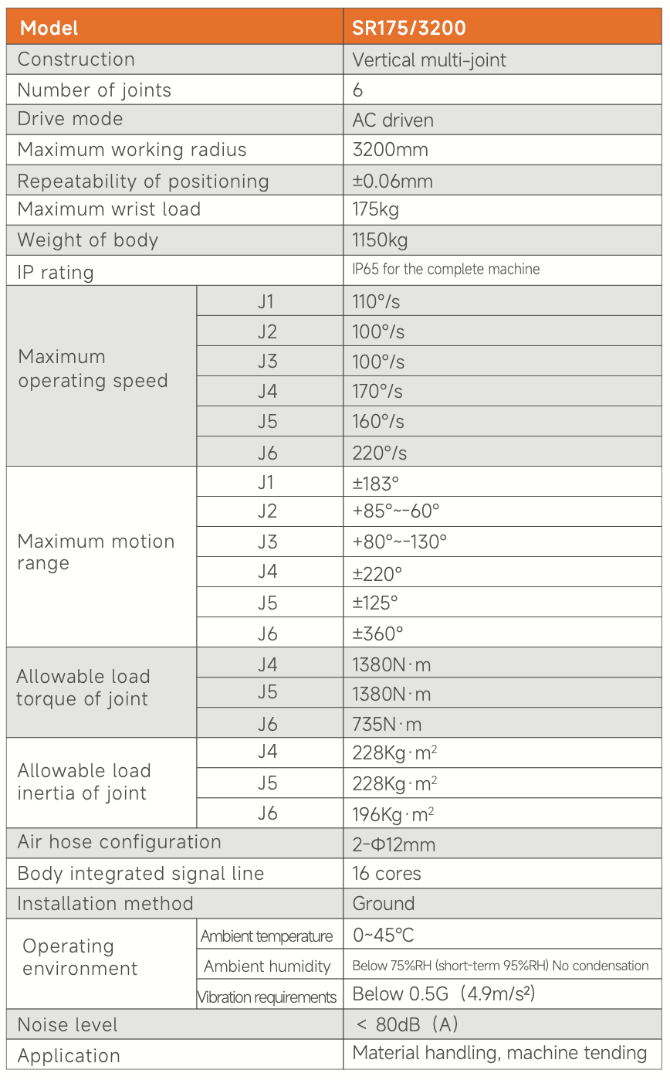

Reach: 3200 mm
Payload: 175 kg
Robot Weight: 1150 kg
Repeatability: ±0.06 mm (some sources cite ±0.1 mm depending on configuration)
Protection Rating: IP65 (body), IP67 (wrist) — designed for reliable operation in demanding industrial environments
Key design features :
-
Number of Axes: 6
- Integrated Utilities: Built-in 16-core signal line and 2-Φ12mm air lines for easy tool mounting and clean cable management
-
Streamlined Design: Robot "slimming" design minimizes interference area with surrounding equipment
-
Compact Base: Small footprint design helps reduce occupied floor space
-
Modular Design: Simplifies maintenance and repair
-
Integrated Mounting Interfaces: Pre-installed interfaces for spot welding, lithium battery handling, and other applications
-
Reliable Communication: Compatible with various fieldbus protocols for seamless integration with existing production systems
We provide tailored solutions, which means every quote is unique.
To give you an accurate estimate of delivery cost and lead time, we'll review your specific project needs, order quantity, and technical requirements upon request.
