SR Series Universal Robot SR175/2700

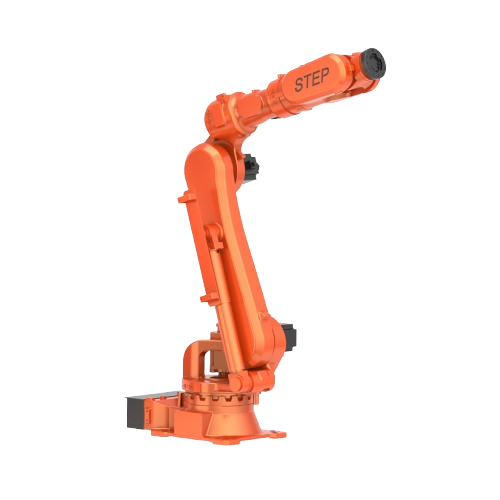

SR175/2700 Industrial Robot
The SR175/2700 is a heavy-duty 6-axis industrial robot engineered for high-payload applications requiring an exceptional reach and robust performance. Utilizing advanced dynamic control algorithms, it achieves faster and more stable operation without compromising precision. Its streamlined design minimizes interference with surrounding equipment, while the compact base reduces floor space requirements . The robot features reinforced wrist construction with a dual-support structure for enhanced load-bearing capacity, and integrated mounting interfaces simplify application integration .
Key Applications:
-
Material Handling: Capable of transporting and palletizing heavy components up to 175 kg within an extensive 2701 mm working range with speed and reliability .
-
Spot Welding: Designed for spot welding applications in automotive body assembly and heavy fabrication, with pre-installed interfaces for welding integration .
-
Material Removal: Well-suited for deburring, multiaxis cutting, trimming, and polishing operations on large castings and fabricated parts .
-
Robot Milling: Can perform robot milling operations requiring smooth path control and consistent accuracy .
-
Lithium Battery Handling: Specifically designed with mounting interfaces for lithium battery material handling and transport applications .
-
Machine Tending: Ideal for loading and unloading large CNC machines, machining centers, and heavy industrial equipment, handling substantial workpieces with precision.
The result:
You achieve exceptional payload capacity, extended reach, and stable high-speed performance in demanding industrial applications — enhancing productivity and automation capabilities in industries such as automotive manufacturing, lithium battery production, metal fabrication, and heavy machinery .
Reach: 2701 mm
Payload: 175 kg
Robot Weight: 1100kg
Repeatability: ±0.06 mm (some sources cite ±0.1 mm depending on configuration)
Protection Rating: IP65 (body), IP67 (wrist) — designed for reliable operation in demanding industrial environments with exposure to dust and coolant
Key design features:
- Number of Axes: 6
- Advanced Dynamic Control: TOPP time-optimal algorithm solves the trade-off between speed and precision, fully utilizing motor and reducer performance with 20% speed increase
- Streamlined Design: Robot "slimming" design minimizes interference area
- Reinforced Wrist Construction: Dual-support structure for enhanced load-bearing capacity
- Compact Base: Small footprint design helps reduce occupied floor space
- Modular Design: Simplifies maintenance and repair
- Integrated Mounting Interfaces: Pre-installed interfaces for spot welding, lithium battery handling, and other applications
- Reliable Communication: Compatible with various fieldbus protocols for seamless integration with existing production systems
We provide tailored solutions, which means every quote is unique.
To give you an accurate estimate of delivery cost and lead time, we'll review your specific project needs, order quantity, and technical requirements upon request.
