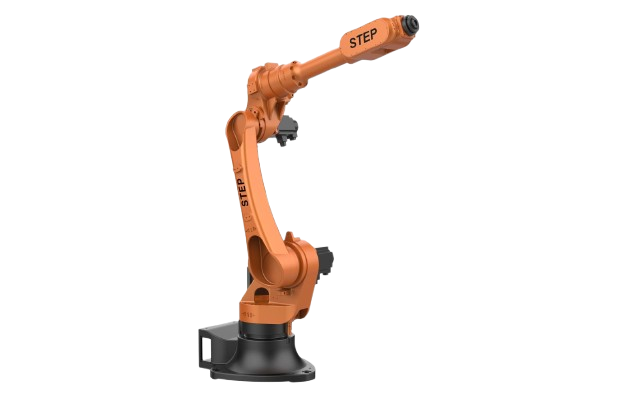

SR Series Universal Robot SR12/1400
The STEP SR12/1400 is a versatile 6-axis industrial robot engineered for industries demanding high precision, reliability, and flexibility in medium-payload applications. Its robust design and advanced motion control algorithms make it ideal for complex manufacturing environments.
Key Applications:
-
Arc Welding: Excellent for automated welding processes. The hollow wrist design allows for internal cable routing, protecting the welding torch cables and ensuring smooth wire feeding, even in tight spaces.
-
Material Handling: Capable of high-speed transport, machine tending, and part transfer for components up to 12 kg within its 1400 mm reach.
-
Machine Tending: Designed for loading and unloading CNC machines, lathes, and milling machines with speed and precision.
-
Assembly: Suitable for precision assembly of medium-sized components in automotive and general industrial applications.
-
Material Application: Can accurately apply adhesives, sealants, and coatings with consistent path accuracy.
The result:
You achieve maximum layout flexibility, high-speed precision, and reliable operation in harsh conditions — enhancing productivity and space efficiency across industries such as automotive, metal fabrication, and general automation.
Reach: 1400 mm
Payload: 12 kg (rated/maximum)
Robot Weight: Approximately 241 kg
Protection Rating: IP54 (body), IP65 (wrist) — suitable for harsh industrial environments with dust and coolant exposure.
Key design features:
- High Precision: Repeatability of ±0.05 mm, maintaining accuracy even at high speeds.
- Flexible Mounting: Can be floor, wall, or ceiling-mounted for optimal cell layout.
- User-Friendly Control: Equipped with an industrial PC-based controller for intuitive programming and seamless operation.
- Reliable Communication: Supports Ethernet and Wi-Fi for easy integration into existing production networks.
We provide tailored solutions, which means every quote is unique.
To give you an accurate estimate of delivery cost and lead time, we'll review your specific project needs, order quantity, and technical requirements upon request.
